Product Introduction

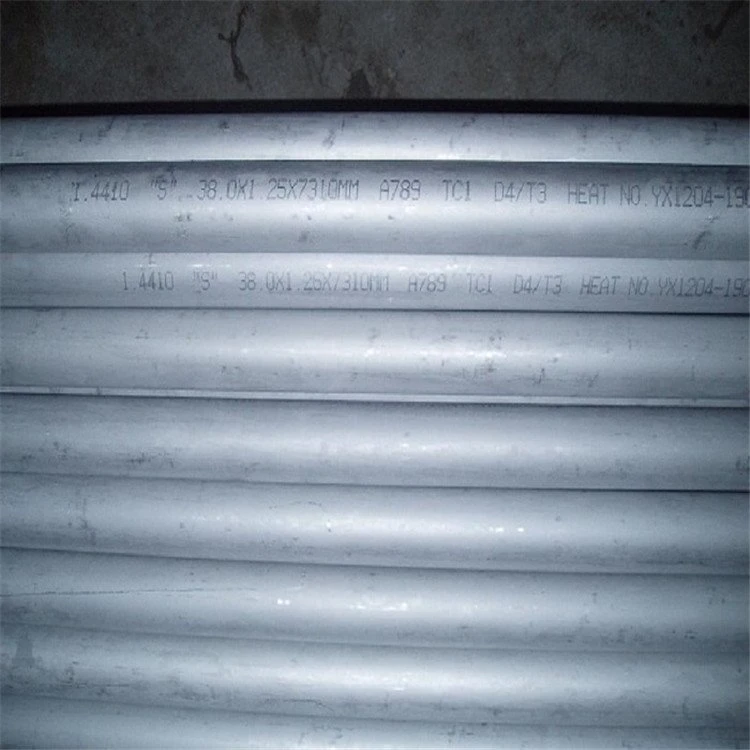

EN10216 1.4410 Seamless Pipe is a duplex stainless steel consisting of an alloy of chromium, molybdenum and nickel-nitrogen. It has high strength, good impact toughness and good overall and local resistance to strong corrosion. Our pipes are seamless tubes made by hot-rolling and cold-drawing processes with smooth inner walls. It is available in a wide range of sizes and can be freely selected. It can also be customised by contacting us. Due to its superior performance, EN10216 1.4410 Seamless Pipe is widely used in power plants, shipbuilding, aviation and other fields.

Compared to 316L and 317L austenitic stainless steels, EN10216 1.4410 Seamless Pipe has superior resistance to pitting and gap corrosion. It has a lower coefficient of thermal expansion and higher thermal conductivity than austenitic. It also has twice the compressive strength of austenitic and is lighter in weight, making it less costly.

Specification

01. EN10216-5TC1/TC2 W. Nr. 1.4410 Seamless Super Duplex Stainless Steel Tubes

02. Process method: cold finished

03. Surface finish: CFD, CFA.

04. Material: W. Nr. 1.4410, X2CrNiMoN25-7-4

05. Specification: EN10216-5 TC1, EN10216-5 TC2, EN ISO 1127, EN ISO 6892-1, EN ISO 8492, EN ISO 3651-2, EN ISO 10893-1, EN ISO 10893-10.

06. Size

a) O.D.: 12 to 139.7 mm.

b) W.T.: 1.0 to 10.0 mm.

07. Length: Max. 25 meters.

08. Tolerance: D3/T3, D3/T4, D4/T3, D4/T4

09. Certificate: EN10204-3.1, EN10204-3.2 by BV, SGS, TUV

10. Applications: Oil & gas, marine, pressure vessel.

11. Packing: end caps, plywood case, wooden case, iron case.

12. Certificate: TS, ISO 9001, PED 97/23/EC, ASME, ABS, DNV-GL

EN10216-5TC1/TC2 W. Nr. 1.4410 Seamless Super Duplex Stainless Steel Tubes

for Pressure Purposes

Some of the quality tests carried out by us include:

Corrosion Test	Conducted only when specially requested by the client
Chemical Analysis	Test is done as per required quality standards
Mechanical Test	Tensile \| Hardness \| Flattening \| Flaring
Eddy Current Test	To detect homogeneities by using Digital Flaw-mark Testing System
Hydrostatic Test	100% Hydrostatic Testing carried out for checking tube leakage
Air Pressure Test	To check any evidence of air leakage
Visual Inspection	The length of each tube is visually inspected by trained personnel to detect surface defects and other defects
