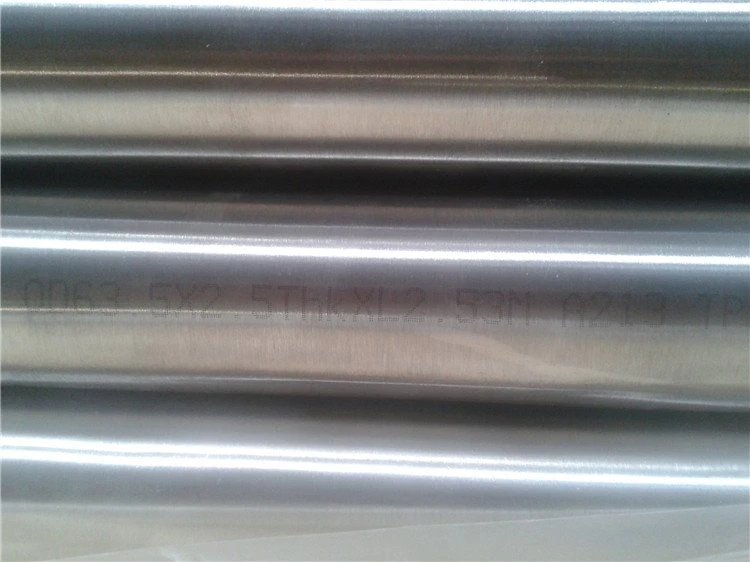

TP310S 1.4845 Stainless Steel Tube
TP310S 1.4845 Stainless Steel Tube is an austenitic stainless steel developed for high temperature corrosion resistance applications.
Overview
TP310S 1.4845 Stainless Steel Tube is an austenitic stainless steel developed for high temperature corrosion resistance applications. Easily welded and machined by standard shop fabrication practices, TP310S 1.4845 Stainless Steel Tube can be used for light oxidation, nitriding, cementing and thermal cycling applications. Also available for low temperature applications with low magnetic permeability and toughness down to -450oF (-268oC).
Features
TP310S 1.4845 Stainless Steel Tube is intended for ease of fabrication. It has a resistance to oxidation of up to 2010oF (1100oC) under mild cycling conditions. Due to its high chromium and medium nickel content, alloy 310 is resistant to sulphiding and can also be used in a medium carburising atmosphere. Due to its high chromium content (25%), it is more resistant to corrosion than most heat resistant alloys.
Details
1) Process method: Cold drawn/cold rolled
2) Surface finish: Annealing/pickling/manual polishing/ mechanical polishing
3) Material: 06Cr25Ni20 (GB), 20Cr25Ni20 (GB), TP310S, 1.4845, 310S, SUS310S, TP310, 310, 1.4841, S31000, S31008, X15CrNi25-21 (EN/ISO/DIN), X8CrNi25-21 (EN/ISO/DIN), 10X23H18 (GOST)
4) Standards: GB/T 14975, GB/T 14976, GB 13296, ASTM(ASME) (SA)A312/213/269/M, GOST 9941-81, DIN17456/17458, EN10216-5, JIS G3448/3459/3463
5) Size:
A) NPS: 1/8" to 20"
B) Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S
Acc. To ASME/ANSI B36.19M or ASME B36.10M
C) O. D.: 6mm to 508mm
D) W. T.: 0.5mm to 15mm
6) Length: Max. 20 meters
7) Delivery conditions: (bright) Annealed, Pickling and Polished
8) Inspection: ISO 9001-2015, PED 2014-68-EU, ASME, DNV, ABS

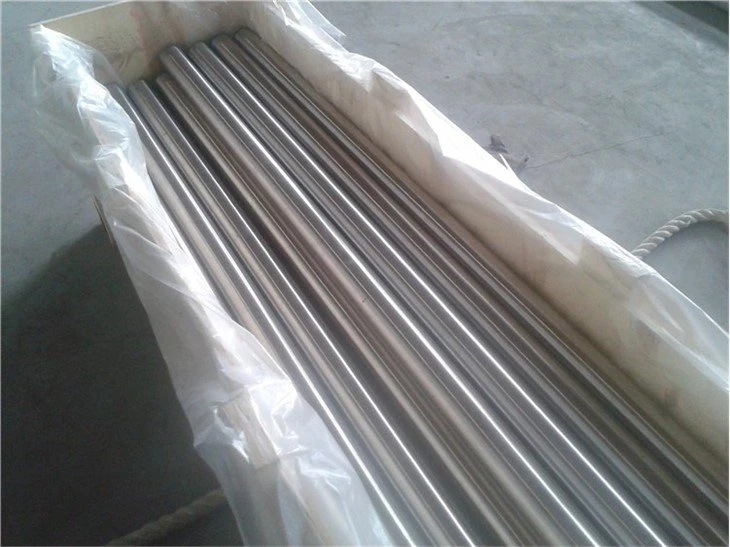

10) Packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging
Chemical Composition (%)
Carbon 0.08
Manganese 2.00
Phosphorus 0.045
Sulfur 0.030
Silicon 1.00
Chromium 24.0–26.0
Nickel 19.0–22.0
Molybdenum
Nitrogen
Niobium
Titanium
Other
Elements
Cu
Mechanical Properties
Solution treatment with 1040℃ temperature
Tensile Strength 515 MPa
Yield Strength 205 MPa
Elongation 35%
Rockwell 90 HRB
