Overview

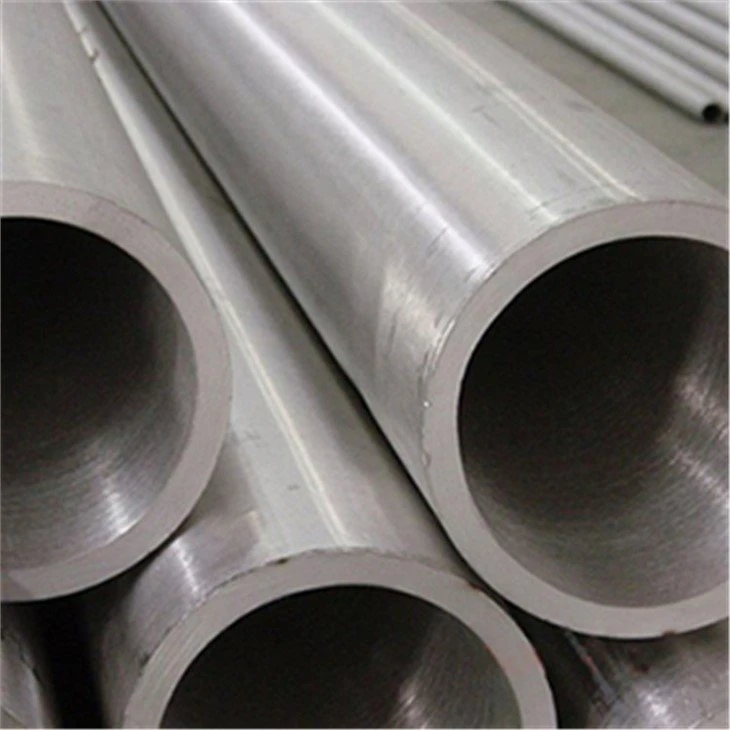

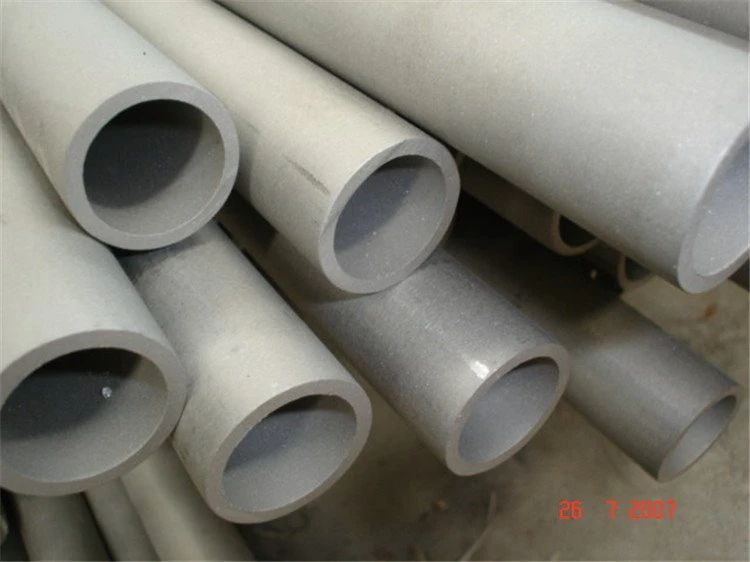

TP347H 1.4912 Stainless Steel Tube is a stable stainless steel sheet stabilised by the addition of niobium and tantalum. It is hardened by cold working and practically easy to weld and machine. In most cases, the carbon content of the plate allows for double certification. Due to its good mechanical properties, it facilitates high temperature applications. TP347H 1.4912 Stainless Steel Tube can be used in sulphuric acid and phosphorus processing plants, paper processing, seawater cooling equipment, oil refinery components, etc.
The main advantage of TP347H 1.4912 Stainless Steel Tube is its excellent resistance to intergranular corrosion when exposed to chromium carbide precipitation temperatures of 800 to 1500°F (427 to 816°C). With high creep and stress fracture properties, this can also be used for sensitisation and intergranular corrosion exposures. It also has good low temperature toughness.
Specification
1) Process method: Cold drawn/cold rolled
2) Surface finish: Annealing/pickling/manual polishing/ mechanical polishing
3) Material: 06Cr18Ni11Nb (GB), 07Cr18Ni11Nb (GB), TP347H, 1.4912, 347H, TP347, 347, 1.4550, S34700, S34709, X7CrNiNb18-10 (EN/ISO/DIN), X6CrNiNb18-10 (EN/ISO/DIN), 08X18H12B (GOST)
4) Standards: GB/T 14975, GB/T 14976, GB 13296, ASTM(ASME) (SA)A312/213/269/M, GOST 9941-81, DIN17456/17458, EN10216-5, JIS G3448/3459/3463
5) Size:
A) NPS: 1/8" to 12"
B) Schedule: 5/5S, 10/10S, 20/20S, 40/40S, 80/80S
Acc. To ASME/ANSI B36.19M or ASME B36.10M
C) O. D.: 6mm to 323.9mm
D) W. T.: 0.5mm to 15mm
6) Length: Max. 20 meters
7) Delivery conditions: (bright) Annealed, Pickled and Polished
8) Inspection: ISO 9001-2015, PED 2014-68-EU, ASME, DNV, ABS
9) Packing: Seaworthy wooden cases/plywood box/steel framed cases/ simple packaging
Chemical Composition (%)
Carbon 0.04-0.10
Manganese 2.00
Phosphorus 0.045
Sulfur 0.030
Silicon 1.00
Chromium 17.0–19.0
Nickel 9.0–13.0
Molybdenum
Nitrogen
Niobium 8×C-1.10
Titanium
Other
Elements
Cu
Mechanical Properties
Solution treatment with 1100℃ temperature
Tensile Strength 515 MPa
Yield Strength 205 MPa
Elongation 35%
Rockwell 90 HRB
Alloy 347 (S34700) is stabilized stainless steel plate which offers as its main advantage an excellent resistance to intergranular corrosion following exposure to temperatures in the chromium carbide precipitation range from 800 to 1500°F (427 to 816°C). Alloy 347 stainless steel plate is stabilized by the addition of columbium and tantalum.
Alloy 347 stainless steel plate is also advantageous for high temperature service because of its good mechanical properties. Alloy 347 stainless steel plate offers higher creep and stress rupture properties than Alloy 304 and, particularly, Alloy 304L, which might also be considered for exposures where sensitization and intergranular corrosion are concerns.
Alloy 347 (UNS S34700) is columbium stabilized austenitic stainless steel plate with good general corrosion resistance and somewhat better resistance in strong oxidizing conditions than 321 (UNS S32100). It has excellent resistance to intergranular corrosion after exposure to temperatures in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C). The alloy has good oxidation resistance and creep strength to 1500°F (816°C). It also possesses good low temperature toughness.
Alloy 347H (UNS S3409) stainless steel plate is the higher carbon (0.04 – 0.10) version of the alloy. It was developed for enhanced creep resistance and for higher strength at temperatures above 1000°F (537°C). In most instances, the carbon content of the plate enables dual certification.
Alloy 347 stainless steel plate cannot be hardened by heat treatment, only by cold working. It can be easily welded and processed by standard shop fabrication practices.
Alloy 347 stainless steel plate exhibits good general corrosion resistance that is comparable to 304. It was developed for use in the chromium carbide precipitation range of 800 – 1500°F (427 – 816°C) where un-stabilized alloys such as 304 are subject to intergranular attack. In this temperature range, the overall corrosion resistance of Alloy 347 stainless steel plate is superior to Alloy 321 stainless steel plate. Alloy 347 also performs somewhat better than Alloy 321 in strongly oxidizing environments up to 1500°F (816°C).
The alloy can be used in nitric solutions, most diluted organic acids at moderate temperatures and in pure phosphoric acid at lower temperatures and up to 10% diluted solutions at elevated temperatures. Alloy 347 stainless steel plate resists polythionic acid stress corrosion cracking in hydrocarbon service. It can also be utilized in chloride or fluoride free caustic solutions at moderate temperatures.
Alloy 347 stainless steel plate does not perform well in chloride solutions, even in small concentrations, or in sulfuric acid.
