Size Range:

Outside diameter: 0.5-25.4 mm (0.0197-1 in.)

Wall thickness: 0.1-8 mm (0.0039-0.315 in.)

Specifications:

ASTM A213, ASTMA269,ASTM A632,AMS5560 , ASTM_B829,ASTM A789A789M

Materials: 304L, 316L, 321, 316Ti, 317L, 347H, 310S, 904L, S31803, S32205, S32750, N04400, N06600, N06625, N08800, N08825

Packages: Wooden Cases, Plywood Cases

Product Features

100%PMI TEST

Chemical composition up to standard

Mechanical Properties uo to standard

Visual/Dimension Inspection up to standard

Delivery on time

Eddy Current test up to standard

Hydrostatic test up to standard

High temperature resistance

Corrosion resistance

Keep straightness

Keep roundness

Main Applications：

Mechanical processing of automobile accessories electrical internal precision pipe fittings electromechanical shell

Other information：

This product is selected by tube blank pickling, phosphating, fine rolling and cold drawing process

Sizes and working pressure

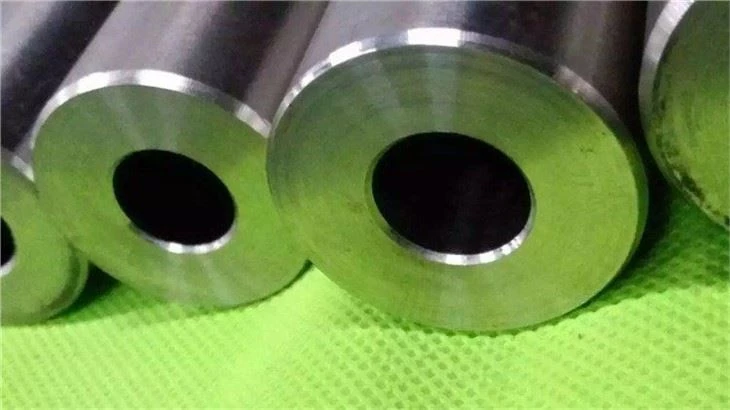

Thick wall seamless steel tubing are manufactured in standard sizes according to the table. Standard lengths are 2-6 meters. Other sizes and lengths up to 16 meters can be offered on request.

OD	= Outside diameter
ID	= Inside diameter
WT	= Wall thickness

1) Calculation basis:
K: Factor = OD/ID
K < 2: Calculation according to AD-regulation B10
K > 2: Calculation basis full plastic condition. Safety factor 0.45.

OD mm	OD in.	ID mm	ID in.	WT mm	WT in.	Working pressure (stat.)1) bar	Working pressure (stat.) bar	Weight kg/m
6	-	2.2	-	1.90		3,120	5,710	0.195
6.35	1/4	2.39	3/32	1.98	0.0781	3,045	5,580	0.217
6.35	1/4	2.29	0.0902	2.03	0.0799	3,180	-	0.220
6.35	1/4	1.59	1/16	2.38	0.0938	4,300	7,890	0.237
9.52	3/8	3.20	1/8	3.16	0.1245	3,380	6,190	0.503
9.52	3/8	1.60	1/16	3.96	0.1560	5,530	10,140	0.551
14.00	-	8.00	-	3.00	-	2,330	-	0.826
14.00	-	5.00	-	4.50	-	3,200	-	1.070
14.30	9/16	8.00	5/16	3.15	0.1240	2,380	4,360	0.879
14.30	9/16	4.76	3/16	4.77	0.1878	3,390	6,210	1.138
19.05	3/4	1.80	-	8.63	-	-	12,00	2.251
30.00	-	10	-	10	-	-	6,250	5.008

Tolerances

OD and ID: +/- 0.1 mm
WT: +/- 10%
Other tolerances can be offered on request.
