Brief Introduction
The Stainless Steel Tube for Heat Exchanger is one of the elements of the heat exchanger and is placed inside the barrel for the exchange of heat between two media. It is made of high quality stainless steel and therefore has a high thermal conductivity and good isothermal properties. The Stainless Steel Tube for Heat Exchanger is available in a wide range of sizes to suit different heat exchanger models.
Features
Stainless Steel Tube for Heat Exchanger is made of selected materials and processed with our proven technology to provide a high level of corrosion resistance in use. In addition, it offers unique environmental advantages, being resistant to high and low temperatures and working well in adverse weather conditions. Moreover, abrasion resistance is also the most significant feature of the tubes.
Specification
Materials: TP304/304L/304H/304N, TP310S/310H, TP316/316L/316H, TP317/317L, TP321/321H, TP347/347H, TP316Ti, TP904L, 254SMo, 600/N06600, 625/N06625, 800/N08800, N08904, 800H，N08825/N08811, S31260, S31803, SAF2205, SAF2304, 1.4306, 1.4401, 1.4404, 1.4833, 1.4845, 1.4571, 1.4438, 1.4541, 12X18H10T, 08X18H10T, 03X18H11, 03X17H14M3 and so on.
Standards: ASTM A213, ASME SA213, ASTM B163, ASME SB163, EN10216-5, JIS G3463, DIN17458
Specification: OD 6mm to 1016mm; WT 0.5mm to 30mm; Length Max 25m.
Tests: all be hydrostatically tested, non-destructive tested (ET and/or UT).

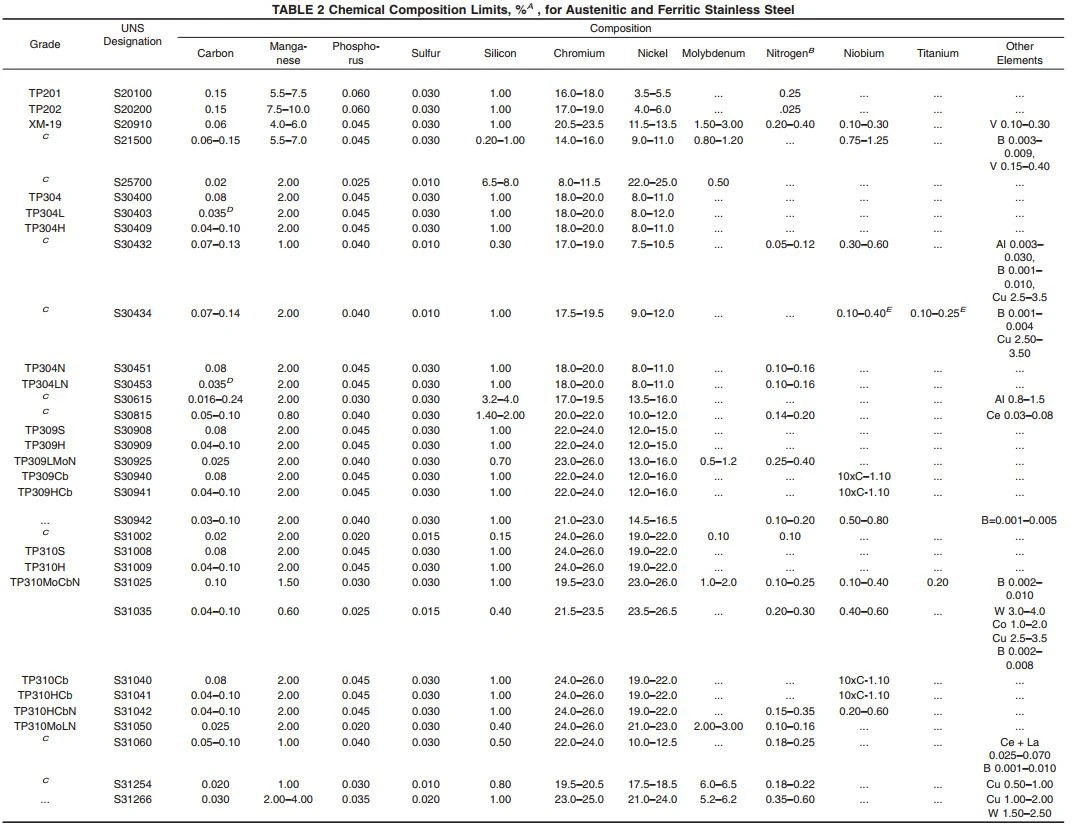

Chemical Composition
This table list material from TP201 to TP310S. Other material compositions would be listed in other products.
Ordering Information
It shall be the responsibility of the purchaser to specify all requirements that are necessary for products under this specification. Such requirements to be considered include, but are not limited to, the following:
Quantity (feet, meters, or number of lengths),
Name of material (seamless),
Grade (Tables 1 and 2),
Condition (hot finished or cold finished),
Controlled structural characteristics (see 6.3),
Size (outside diameter and minimum wall thickness, unless average wall thickness is specified),
Length (specific or random),
Hydrostatic Test or Nondestructive Electric Test (see 10.1),
Specification designation and year of issue,
Increased sulfur (for machinability, see Note B, Table1, and 16.3), and Special requirements and any supplementary requirements selected.
